Reusable React Code Modules, Part 11 - Web Sockets

Real-Time Communication: Creating Reusable Web Socket Modules

WebSockets enable real-time, bidirectional communication between a client and server, crucial for applications that require live updates such as chat applications, live notifications, and real-time data feeds. This guide covers how to structure reusable WebSocket modules in React, manage real-time data efficiently, and integrate common WebSocket libraries.

Common Libraries and Tools

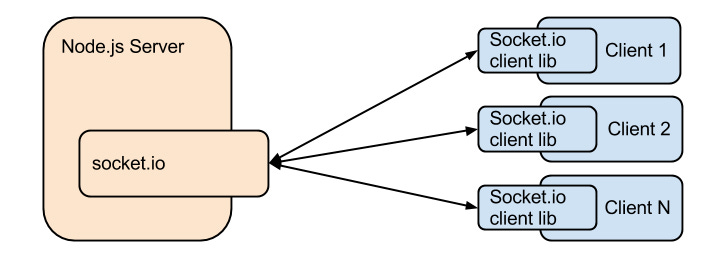

1. Socket.IO

Socket.IO is a popular library for real-time web applications, offering a simple and robust API

Key Features

• Supports real-time bidirectional event-based communication

• Automatic reconnection

• Binary streaming

• Supports namespaces and rooms

2. WebSocket API

The WebSocket API is a native JavaScript API for creating WebSocket connections

Key Features

• Native browser support

• Low-level API

• Supports binary data transfer

3. ReconnectingWebSocket

ReconnectingWebSocket is a small library that provides automatic reconnection for WebSocket connections

Key Features

• Automatic reconnection with configurable delay

• Simple API

• Compatible with the standard WebSocket API

4. StompJS

StompJS is a JavaScript client for the STOMP protocol, often used with message brokers like ActiveMQ or RabbitMQ.

Key Features

• Supports the STOMP protocol

• Works with many message brokers

• Heart-beating and error handling

Comparison

• Socket.IO: Best for comprehensive real-time communication with automatic reconnection and event-based API

• WebSocket API: Ideal for projects requiring low-level WebSocket control with native browser support

• ReconnectingWebSocket: Suitable for applications needing automatic reconnection without additional features

• StompJS: Best for applications requiring STOMP protocol support and integration with message brokers

Examples

Example 1: Socket.IO

Setup:

import { io } from 'socket.io-client';

const socket = io('https://example.com', {
  transports: ['websocket'],
  reconnectionAttempts: 3,
  reconnectionDelay: 1000,
});

export default socket;

Usage:

import React, { useEffect, useState } from 'react';
import socket from './socket';

const Chat = () => {
  const [messages, setMessages] = useState([]);
  const [input, setInput] = useState('');

  useEffect(() => {
    socket.on('message', (message) => {
      setMessages((prevMessages) => [...prevMessages, message]);
    });

    return () => {
      socket.off('message');
    };
  }, []);

  const sendMessage = () => {
    socket.emit('message', input);
    setInput('');
  };

  return (
    <div>
      <ul>
        {messages.map((msg, index) => (
          <li key={index}>{msg}</li>
        ))}
      </ul>
      <input value={input} onChange={(e) => setInput(e.target.value)} />
      <button onClick={sendMessage}>Send</button>
    </div>
  );
};

export default Chat;

Example 2: WebSocket API

Setup:

const createWebSocket = (url) => {
  const socket = new WebSocket(url);

  socket.onopen = () => {
    console.log('WebSocket connection opened');
  };

  socket.onclose = () => {
    console.log('WebSocket connection closed');
  };

  socket.onerror = (error) => {
    console.error('WebSocket error:', error);
  };

  return socket;
};

export default createWebSocket;

Usage:

import React, { useEffect, useState } from 'react';
import createWebSocket from './webSocket';

const RealTimeData = () => {
  const [data, setData] = useState([]);
  const socket = createWebSocket('wss://example.com/socket');

  useEffect(() => {
    socket.onmessage = (event) => {
      const message = JSON.parse(event.data);
      setData((prevData) => [...prevData, message]);
    };

    return () => {
      socket.close();
    };
  }, [socket]);

  return (
    <div>
      <h1>Real-Time Data</h1>
      <ul>
        {data.map((item, index) => (
          <li key={index}>{item}</li>
        ))}
      </ul>
    </div>
  );
};

export default RealTimeData;

Example 3: ReconnectingWebSocket

Setup:

import ReconnectingWebSocket from 'reconnecting-websocket';

const createReconnectingWebSocket = (url) => {
  const socket = new ReconnectingWebSocket(url, [], {
    reconnectInterval: 2000,
  });

  socket.onopen = () => {
    console.log('Reconnecting WebSocket connection opened');
  };

  socket.onclose = () => {
    console.log('Reconnecting WebSocket connection closed');
  };

  socket.onerror = (error) => {
    console.error('Reconnecting WebSocket error:', error);
  };

  return socket;
};

export default createReconnectingWebSocket;

Usage:

import React, { useEffect, useState } from 'react';
import createReconnectingWebSocket from './reconnectingWebSocket';

const Notifications = () => {
  const [notifications, setNotifications] = useState([]);
  const socket = createReconnectingWebSocket('wss://example.com/notifications');

  useEffect(() => {
    socket.onmessage = (event) => {
      const notification = JSON.parse(event.data);
      setNotifications((prevNotifications) => [...prevNotifications, notification]);
    };

    return () => {
      socket.close();
    };
  }, [socket]);

  return (
    <div>
      <h1>Notifications</h1>
      <ul>
        {notifications.map((notification, index) => (
          <li key={index}>{notification}</li>
        ))}
      </ul>
    </div>
  );
};

export default Notifications;

Example 4: StompJS

Setup:

import Stomp from 'stompjs';

const createStompClient = (url) => {
  const client = Stomp.client(url);

  client.connect({}, () => {
    console.log('Stomp client connected');
  }, (error) => {
    console.error('Stomp client error:', error);
  });

  return client;
};

export default createStompClient;

Usage:

import React, { useEffect, useState } from 'react';
import createStompClient from './stompClient';

const MessageBroker = () => {
  const [messages, setMessages] = useState([]);
  const client = createStompClient('ws://broker.example.com/stomp');

  useEffect(() => {
    client.connect({}, () => {
      client.subscribe('/topic/messages', (message) => {
        setMessages((prevMessages) => [...prevMessages, JSON.parse(message.body)]);
      });
    });

    return () => {
      client.disconnect();
    };
  }, [client]);

  return (
    <div>
      <h1>Message Broker</h1>
      <ul>
        {messages.map((msg, index) => (
          <li key={index}>{msg.content}</li>
        ))}
      </ul>
    </div>
  );
};

export default MessageBroker;
